Steel Construction C Z Purlin Roll Forming Machine For Cold Roll Former Proucts

Product Categories

Friendship Machinery Co., Ltd

Contact Now

Brand Name : FSM

Model Number : FSM-002

Certification : Factory certificate

Place of Origin : jiangsu province

MOQ : 1 set

Price : 18000usd/set

Payment Terms : Western Union, MoneyGram, L/C, T/T

Delivery Time : 90days

Packaging Details : 1*40GP

Products name : Cold roll forming machine

feeing width : 914mm,1000mm,1200mm,1250mm

roof width : 820mm,828mm,1000mm

Coil thickness : 0.3-0.8mm

Drive : Electirc dirve

transmission : Chain

speed : 15m/min

Contact Now

Electrical Driven Profile Cold Roll Former With 16 Hydraulc Stations

Steel Construction C Z Purlin Roll Forming Machine For Cold Roll Former Proucts

Cold roll forming machine

I: Composition of Machine

Specifications of Profile Roof Roll Forming Machine

Item	Roll Forming Machine
Coil Material	Thickness	0.3-0.8mm
	Coil width	1000mm /1200mm /1250mm
	Yield Strength	250-350 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Roll Forming Machine	Forming Stations	16 Stations
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Cutting	Cutting type	Hydraulic cutting
	Cutting power	3KW
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

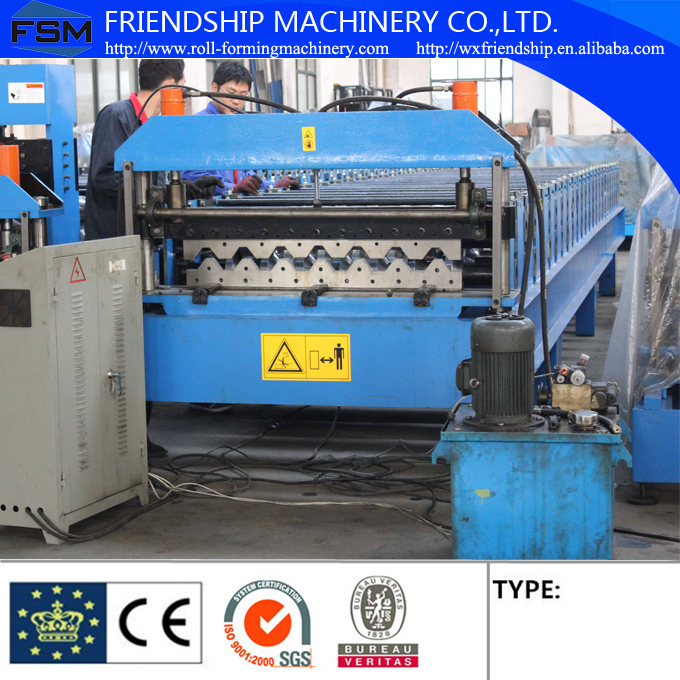

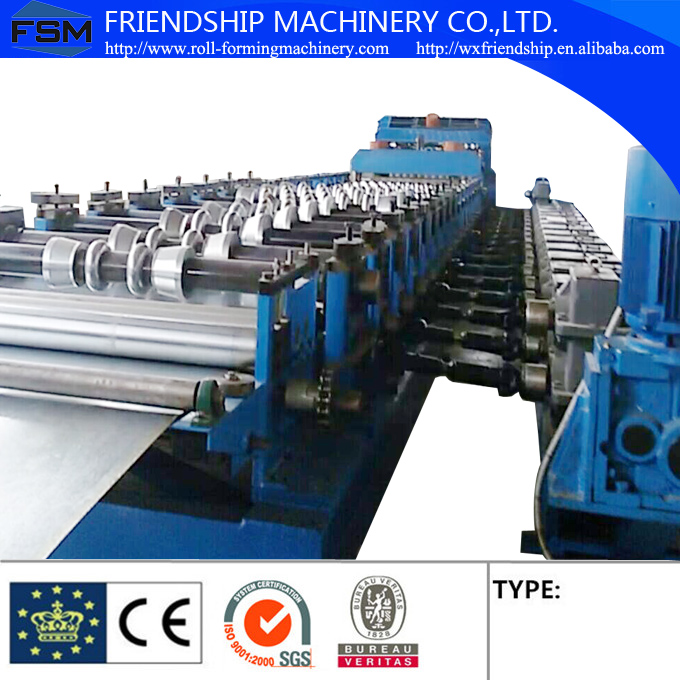

Pictures Show

Steel Construction C Z Purlin Roll Forming Machine For Cold Roll Former Proucts
